Pompe de circualatie electronice cu magneti permanenti - motoare sincrone:

  • NMT MAX

    • Technical specification
    Qmax up to 55 m3/h
    Hmax up to 16,5 m
    P PN 6 / 10 Bar
    DN 40/50/65/80
    installation flange
    Insulation class F
    Degree of protection IP 44
    Voltage 1 ~ 230V, 50 Hz
    Material
    Hydraulic casing cast iron/bronze
    Impeller PES
    Shaft stainless steel AISI 316
    Bearings grafit
    Rotor can stainless steel AISI 316

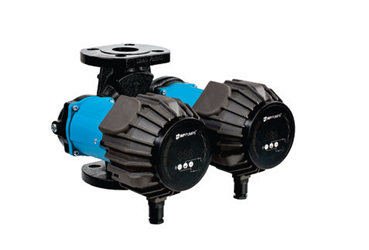

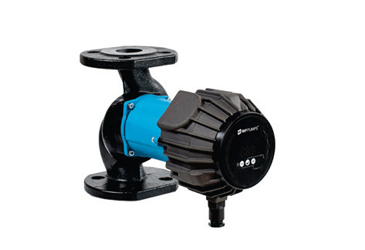

    nmt_max nmt_max_double

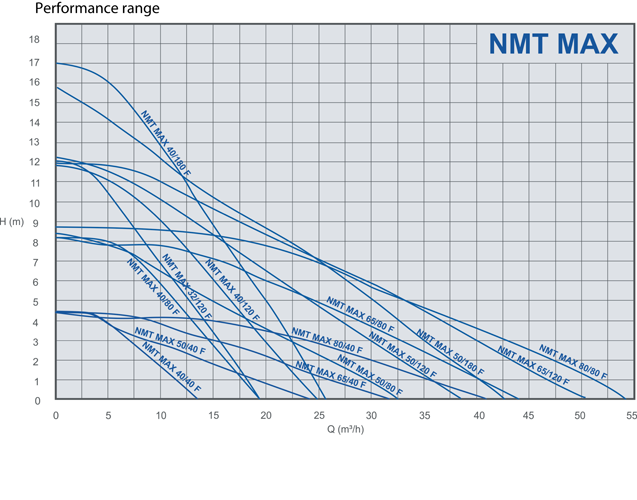

    nmt_max_d
